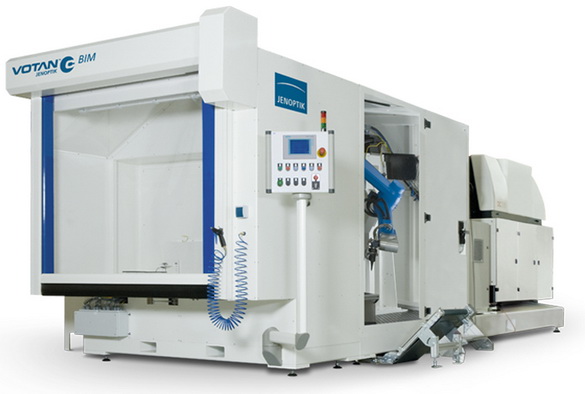

Laser Cutting Machine JENOPTIK-VOTAN® BIM
The laser cutting machine JENOPTIK-VOTAN® BIM stands out due to its exceptionally high precision, dynamic and accessibility.

Light weight robot design for highest dynamics and precision
Position repeatability down to +-0,05 mm (benchmarking with gantry system done)
System based on high efficient and reliable fiber laser technology respectively well established CO2 lasertechnology for processing plastic components
Slim cutting head design for high accessibility to the workpiece
Integrated beam guide: laser light directed by mirrors through the inside of the robot
No focal shift due to constant beam length inside of the robot
Dynamic laser power regulation and distance control for highest cutting quality and process stability
integrated collision protection
low maintenance and operational expenses
short times for start-up and relocation
Compact overall system design
Modular design of the key components for line integration
Capable of up to 5 kW laser power
powerful exhaust and filter unit
Reliability of over 200 high power laser processing systems in the field of automotive production
Best performance of a cutting robot in accuracy, speed and fast air moves due to light weight robot design; overall performance comparable to gantry systems
Real 3D processing due to highest accessibility to the workpiece
Capable to meet specifications of the automotive industry
Best cost of ownership due to small footprint, energy efficiency and no wear out by contact free processing
Cutting system and exhaust unit out of one hand -> process stability
Support by one of the best equipped application centres
Support by a world wide automotive experienced service structure
