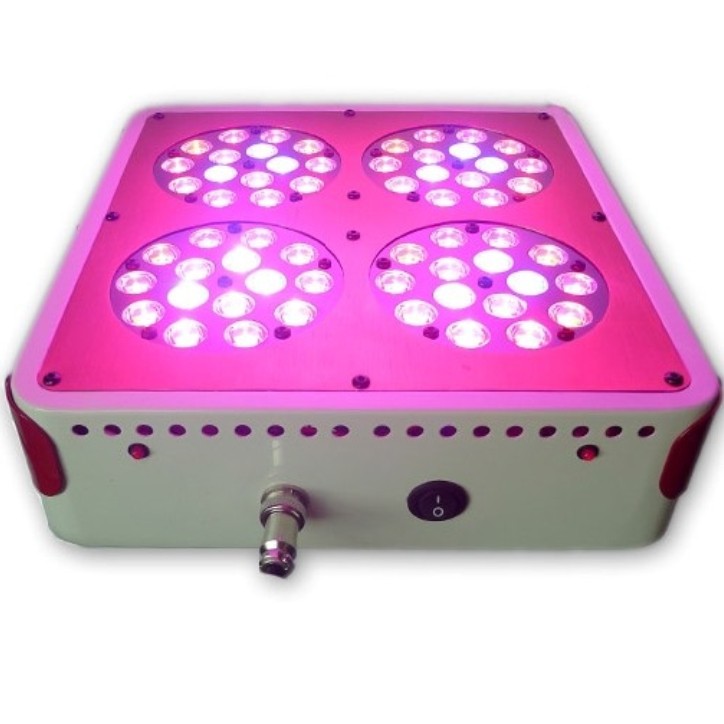

LED Grow Lights manufacturer

Size: 270*283*85mm Actual Power: 132W~136W
Input Voltage: AC100~240V Output Current: 700mA
Output Voltage: DC32~45V LED Quantity: 60pcs
Lifespan: 50,000 Hours LED Type: 3W
Working Environment: -20~40oC, 45%~95%RH Color: Red(630nm)/Blue(460nm)
Working Frequency: 50~60Hz Lumens: 2400lm
PAR: 238umol/1m 120/1.5m LUX: 9500lux/1m 4700lux/1.5m
N.W.: 3.65kg Lighting Area: 8.5m^2/1m 19.3m^2/1.5m
Inner Carton Size: 360*350*150mm G.W.(Inner carton): 4kg
Outer Carton Size: 540*380*360mm/4pcs G.W.(Outer carton): 17.9kg
Standardconfiguration: LED Light x1,Power line x1,Chaining x2
Remarks: The above parameter is based on Red:Blue=8:1, for reference only
Characteristics:
1. Use 3W high quality LED lighting source, the lifespan is over 50000 hours.
2. Replace 3~5 times of the HPSL power, 80% electric energy saving than the tradition HPSL and MHL.
3. High lighting effect, 90% of the light will be absorbed by the aquatic plant, but to the traditional HPSL and MHL, the lighting effect is just 8%~10%.
4. The input voltage is AC100V~240V, suitable for the world standard. Built-in power supply. No need other equipment, just access AC100~240V voltage from the plug, the lamp will be working smoothly, don''t need the reflector and ballast either.
5. Revolutionary heat dissipation design, availably alleviate the internal thermal cycle, 10-15oC lower than its precursor in performance.
6. Intelligent monitor system, ensure the whole equipment in a good working state.
7. Using advanced isolated power driver, UL standard output voltage which is lower than 45V DC.Soft starting protection to avoid the transient currents impact, effectively protecting the LEDs from high voltage damage.
8. Aluminium face shield design, housing available for various colors.
9. New product is lighter and more convenient for shipping,modular assembling very convenient for maintaining.
10. Modular assembling, no glue and glass design, very easy for repairment and maintenance.
11. New technology in fans will be more long-lasting,decreasing 50% noise.
12. Built with optical lenses, the penetration is more outstanding.,can be as much as 10-15 times powerful,available four options of lenses(90 degree,120 degree).
13. The lighting area and the height are changeable according to different plants and environments, the same as the parameter .
14. Environment-friendly, no mercury and other harmful heavy metal.
15. Appearance features are also can be customer design,available shell colors:red,black,white.Face shield colors:red,black,silver,blue.Vents colors:red,black,ivory white,grey.
16. Customers can choose the different ratios, Our suggestion is red: blue=8:1 or 7:2, red: blue: orange=7:1:1. The suggested wavelength of the red is 620-630nm, the blue is 460-470nm and the orange is 610-615nm. With the mixture of red ,blue, orange, yellow, UV, IR and white lights, provide the plants needed nutrient light. The red LEDs are good for sprouting and flowering, while the blue LEDs promote the growth, at the same time, customers also can choose the more suitable wavelength and LED colors.
17.Optional 14W/45W/50W/120W/200W/400W/300W/600W and special customization
Application:
Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.
Attention:
1. Do not use the lights in dripping water or anywhere where they will get wet, water and electricity can be a dangerous mixture.
2. The working environment for the light is -20~40oC,45%RH~90%RH.
3. To protect the light, Pls cut off the power when there is a lightning strike.
4. Don''t touch or move when the light working.
