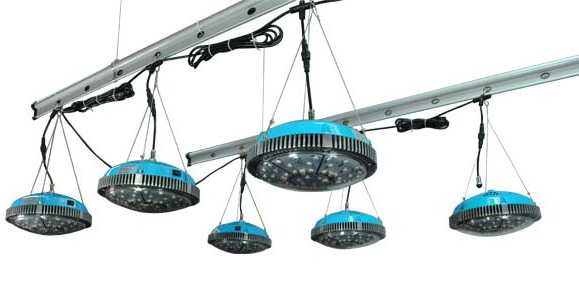

ufo led grow lights


Model: ufo-90
Wide range voltage input 100-240V AC
Double cages structural heat dissipation design,better cooling performance:
The double cages structural design change the heat dissipation mode of the traditional LED grow light, divide the inside of the lamp to tow parts, and form two heat-dissipation cages, cut off the internal thermal cycle effectively and reach the best cooling performance.
Use the unique air-out design and open air exhaust in the two sides of the lamp, remove the high temperature air rapidly, ensure the light body operation in a low-temperature environment.
Prevent drippage water design:
The lid of the light is with sloping ends and 5oangled holes to prevent the light from the damaging of drippage and dust.
High quality 3W LED+700mAcurrent=The top performance:
700 mA is the best drive current for 3W LEDs,runing LEDs with possibly high current can take full advantage of LEDs, making your initial investment in LED devices to be well worth it.However, LEDs and LED drivers should be of superior quality as so to undertake the high electric current, besides the entire equipment should be good enough in heat dissipating to bear all the heat emitted by 3w leds.Selects the finest LEDs and drivers to ensure the stable performance as well as the long life span of the fixtures,our three-year warranty policy proves our confidence in products.
Modularity design:
Modularity design, each part interconnect by the male female plug directly, very easy for repairment and maintenance, only few steps to assemble up the whole fixture.
Customizable spectrum:
Cambered LED panel with 150owide beam angle, more evenly in light delivery and larger in lighting coverage.
High hardness ABS, PC material housing offer an additional level of safety.
Superior seismic performance: when bare light without any protection, a 0.4M-height fallen to the ground would not cause any damage.
Specification
Name:90W LED Grow Light Actual power:85~95W
Model:CDL-G-UFO90W LED Qty:48pcs*3W
Input voltage:AC100~240V LED color:Red(630nm)/Blue(460nm)
Output voltage:DC55~70V Lifespan:50,000 Hours
Input current:670~700mA Working frequency:50~60Hz
PF:0.9 Working environment:-20~40oC, 45%~95%RH
Product size:?260*136mm N.W.:2.86kg
Inner carton size:290*290*180mm G.W.(Inner carton ):3.3kg
Outer carton size:590*300*370mm G.W.(Outer carton ):14.05kg
Standard configuration: LED Light x1,Power line x1,Chaining x2
Remarks:The above parameter is based on Red:Blue=8:1, for reference only

Illumination and PAR value data sheet
Height(cm) 20 40 60 80 100 150 200
PAR (umol m-2s-l) 580 170 83 50 32 14 8
Illumination(lux) 15080 4880 2880 1335 816 380 221
Irradiation Area(m^2) 9.62 14.51 18.84 22.21 22.38 28.26 34.19
(Remarks: the irradiation area is base on PAR value>10 )
Characteristics:
1. Use plastic and die casting aluminum shell, 1, Antirust and antiseptic 2, Elegant appearance and beautiful in colour 3. Reducing the weight of the whole light 4, Stable afety performance
2. Use the patented double cavity cooling structure; 1, The thermal radiation properties is increased by 50% 2. Effectively prevent the greenhouse effect in the lamp 3, Due to the good heat dissipation structure design, make the lamp can run smoothly under 700mA current high-power, created the miracle in the industry, greatly improve the effective utilization rate of the LED, fully improve the cost performance, reducing 60% decibels of the fan noise.
3. Unique back shell air intake design is our company''s patent design, created the waterproof and dustproof fan heat dissipation lamps , thus developed using the fan heat dissipation.
4. The whole lamp circuit use plug connection, the lamp board and power supply respectively in the transparent cover and the back shell, more convenient and simple for maintenance.
5. Use advanced isolation power supply and soft start protection technology, to prevent the high voltage when turn on the light from damaging the lamp body.
Introduction:
1. Use high quality LED lighting source, the lifespan is up to 50000 hours.
2. Replace 3~5 times of the HPSL power, 80% electric energy saving than the tradition HPSL and MHL.
3. High lighting effect, 90% of the light will be absorbed by the aquatic plant, but to the traditional HPSL and MHL, the lighting effect is just 8%~10%.
4. Input cooling system, well solve the heat sink problem.
5. The input voltage is AC100V~240V, suitable for the world standard. Built-in power supply. No need other equipment, just access AC100~240V voltage from the plug, the lamp will be working smoothly, don''t need the reflector and ballast either.
6. The lighting area and the height are changeable according to different plants and environments, the same as the parameter.
7. Environment-friendly, no mercury and other harmful heavy metal.
8. Customers can choose the different ratios, Our suggestion is red: blue=8:1 or 7:2, red: blue: orange=7:1:1. The suggested wavelength of the red is 620-630nm, the blue is 460-470nm and the orange is 610-615nm. With the mixture of red ,blue, orange, yellow, UV, IR and white lights, provide the plants needed nutrient light. The red LEDs are good for sprouting and flowering, while the blue LEDs promote the growth, at the same time, customers also can choose the more suitable wavelength and LED colors.
9.Optional 14W/45W/50W/120W/200W/400W/300W/600W and special customization
Application:
Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.
Attention:
1. In order to save energy, please turn off the power if not use the lamp in a long time.
2. Do not use the lights in dripping water or anywhere where they will get wet, water and electricity can be a dangerous mixture.
3. The working environment for the light is -20~40oC,45%RH~90%RH.
4. To protect the light, Pls cut off the power when there is a lightning strike.
5. Don''t touch or move when the light working.
