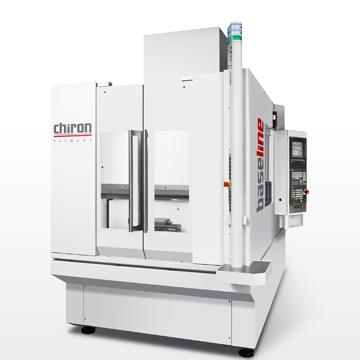

Chiron FZ 15 W Baseline
The FZ15 W has enormous ability for high miling capacity and is among the best machining center of its class in terms of speed, compact construction, stability and reliability.

The heart of its technology is the CHIRON basket tool changer which offers high positioning accuracy, since the travelling column does not need to change it's X - Y position during a tool change.

Technology information:

travel (X / Y / Z): 550 / 400 / 425 (360) mm
main spindle: 10.500 min-1
drive power (15% ED): 14 kW
torque: 90 Nm
tool places: 20 tools
tool shaft: SK40 / HSK-A63
rapid traverse: 40m/min
NC-Control: Siemens
rotary table: workpiece swivel table
