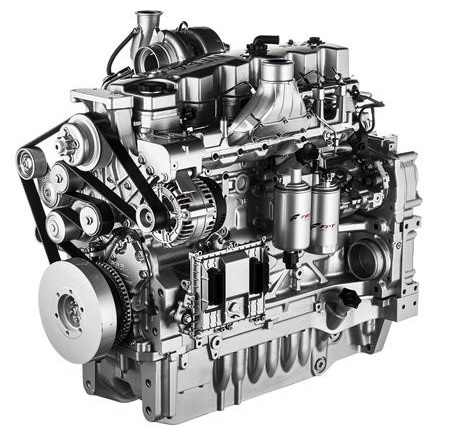

The FPT Industrial N67 Stage V
In partnership with its sister brand Case IH, FPT Industrial is powering the Optum 300 CVXDrive tractor with its N67 Stage V engine. With the new emission regulation for non-road machinery being effective from 2019, the Case IH model is Stage V-compliant thanks to FPT Industrial''s engine knowledge and preparation.

The N67 Stage V engine ensures fuel efficiency and low particulate emissions and its VGT Turbocharger contributes to its high power and quick load response. The 6.7-liter, 6-cylinder engine delivers maximum power of 230 kW @ 1800 rpm and maximum torque of 1282 Nm @ 1400 rpm.

N67 Stage V for CASE IH Optum 300 CVXDrive Specifications
Architecture: In-Line 6-cylinder engine
Injection System: Common rail (up to 1,600 bar)
Air Handling: eVGT
Valves per cylinder (number): 4
Displacement (l): 6.7
Bore x Stroke (mm): 104 x 132
Rated Power: 221kW @ 2100 rpm
Max Power: 230kW @ 1800 rpm
Max Torque: 1282Nm @ 1400 rpm
Oil Service Interval (h): 750
EGR: NO
ATS: HI-eSCR2
