The Height Gage with the Highest Level of Precision Worldwide Now Includes Large Colour Display
4/23/2013 |
|
|

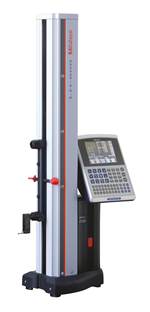

The most accurate 2D height gage in its class is now even more user-friendly and versatile: Mitutoyo presents the new generation of the Linear Height LH-600 with a large colour display and even more enhanced data transfer capacities.
With an admissible length measurement deviation of (1.1+0.6L/600) µm, the LH-600 height gage by Mitutoyo offers the highest level of precision of all systems of its class on offer worldwide. All data processing functions required for two-dimensional height measurements and their analysis are included.
The current instrument generation of the Linear Height LH-600 is provided with a generous 14.5 cm TFT-LCD colour display with brilliant contrast and excellent readability. The new colour display display increases its ease of operation even more and ideally complements the clear layout of the keypad for all system settings, measurement operation functions and coordinate system preparation.
The Linear Height LH-600 offers a generous storage capacity for 50 measuring programs or 60,000 measurements. Via the RS-232C data output, which is provided as standard, the acquired measurement data can be directly transferred to a PC and evaluated externally. In addition, the unlimited transfer of data and parts programs onto USB flash drives of any storage capacity is now also possible.
The new versions of the Linear Height LH-600 2D height gage are available now. |
|
|
|
|
|
