Belden 10GX shielded cabling offers superior performance, outstanding reliability and top class noise immunity
11/8/2012 |
|
|

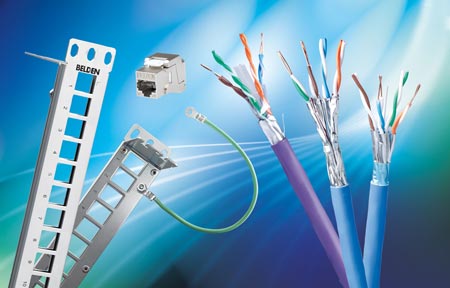

Belden 10GX 10 Gigabit Shielded Cabling System, with its superior performance and reliability even in the most demanding networking environments, comes into its own in areas subject to severe EMI/RFI conditions, often found in hospitals and healthcare facilities, as well as some government facilities.
Networks with high density Category 6 A infrastructure, such as found in some modern Data Centers, will also benefit from the system's superior Alien Crosstalk immunity.
Networks supporting bandwidth-intensive, error-sensitive applications, such as uncompressed high-resolution digital video, medical imaging, digital animation, CAD/CAM, high-speed data storage or cluster computing, will benefit from a 10GX Shielded Cabling System infrastructure. The System exceeds all performance specifications of Class EA in Amendments 1:2008 to ISO/IEC 11801 2nd:2002.
Our patented features such as ‘bonded-pair' cable construction and patented noise cancelling help make the 10GX System a clear performance leader in Category 6A cabling systems. These features, together with the benefits of a physically shielded design, provide multiple layers of defense against EMI/RFI and Alien Crosstalk impairments that would otherwise reduce network performance and reliability.
The 10GX Shielded Cabling System provides guaranteed bandwidth and performance margins beyond industry standards. Cables are flexible and have a small OD, for fast and easy termination in ‘tool-less' connectors. Their color-coded shielded metallic jacks help simplify network management. Shielded modular cords meet or exceed IEC mechanical stress requirements as specified in IEC 61935-2 Ed. 3.0.
Our's 10GX Shielded Systems meet and exceed the requirements of ANSI/TIA-1005 standard governing levels of noise immunity at the highest level of severity for a Class E3 environment. |
|
|
|
|
|
