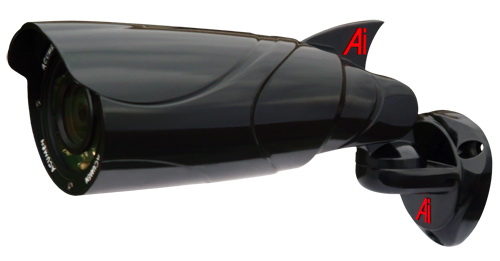

Ai-A2i


Model: Ai-A2i
Specifications

Camera Type 2MP Full HD Network Dome Camera
Pickup Device 1/3" Progressive Scan CMOS
Pixel Effective 1600x1200@15fps, 1280x720 @ 30fps
Sensitivity 0.1 Lux / F=1.2 (IR Off)/0 Lux (IR On)
Day & Night True Day/Night with IR cut filter
Electronic Shutter Rolling
IR IR LEDs+Mechanical IR cut filter
Controlled by a CDS sensor
IR Working Range 4.3mm, 40 Meters
2.8-10mm 60Meters
Compression Format H.264/MPEG-4/M-JPEG
Video Quality 4 levels adjustable
Interface 10Base-T/100Base-TX auto-negotiation, RJ-45 socket ;
Support MDI/MDI-X auto crossover function
Supported Protocols HTTP, TCP/IP, UDP, RTP, RTSP, FTP, SMTP, DHCP, DNS, DDNS, NTP, uPnP
Alarm Input/Output 1/1
Event Triggered by Alarm input, Manual trigger,
Notification over Trigger alarm output, Send mail notification, Upload video to FTP,
Send HTTP notifi cation and Network alarm
Bullet-proof, Antivandal YES
Power Source AC24V/DC12V & PoE
PoE Optional (PoE 802.3af)
Power Consumption 10W max. (12VDC)
Bracket 3D super-water-proof
