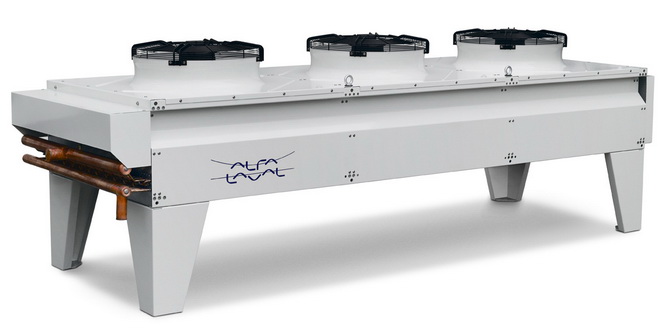

AlfaBlue BCM/BCD condensers
Industrial range of air-cooled H(C)FC condensers. Suitable for both vertical and horizontal air flow.
Capacities 15 to 862 kW.

Innovative AlfaBlue condensers combine an excellent heat transfer with minimized refrigerant charge, thanks to the new fin corrugation developed by Alfa Laval combined with advanced cross-fin tubes. In standard execution, condensers are manufactured from copper tubes and aluminium fins with fin spacing of 2.1 mm.
For double fan row units, double connections provide the possibility for two completely independently operating heat exchangers. Each heat exchanger undergoes a pressure and leaking test with dry air at 34 bar (design pressure is 31 bar) and is supplied with a nitrogen pre-charge.
