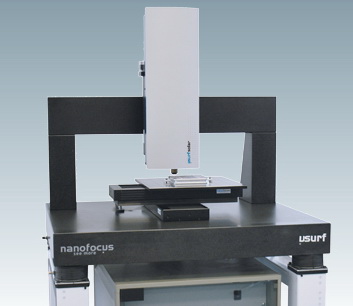

µsurf solar
3D inspection of crystalline solar cells
µsurf solar is a high precision optical measurement solution for the board range of solar applications in laboratory and production. The optimum flexibility allows all measurement tasks to be performed with nanometer accuracy using the confocal technology. This extensive evolution delivers highest stability of data - with highest dynamic and intuitive handling.

As a business solution, the ?surf solar is adapted to the requirements of solar industry from hard- to software. For instance the positioning tables are available up to the metre range which is required to measure whole solar modules. A vacuum chuck with a bearing area of 210x210mm2 guarantees the safe fixture of the solar cell while moving the stages without damaging it.

?surf solar by NanoFocus enables non-destructive analyses without preparation of the samples. For the 3D inspection system, it doesn''t matter if the surfaces possess etched structures or an anti-reflective coating. Also for samples with awkward characteristics such as steep slopes, complex geometries and structures in the nanometre range, ?surf solar delivers exact and repeatable 3D measurement data within a few seconds. For more effiiency during the measurement process, the measurement system can be equipped with a straightforward and industry-sector-specific automation.
