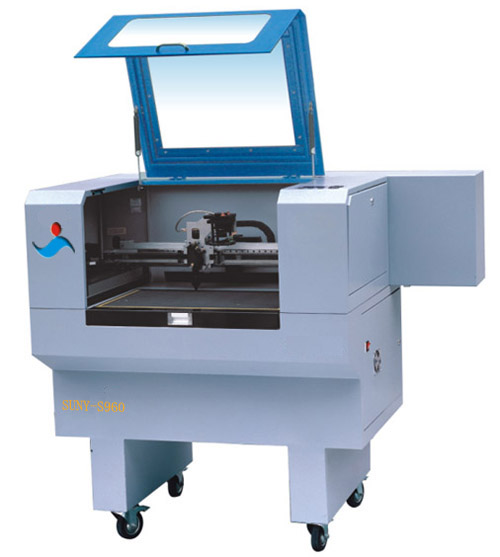

laser cutting engraving machine, laser cutter,laser engraver
Model: SUNY-960
|
|
Detailed configuration:
A. United States imported fully stepper motor and drive systems
B. SUNYLASER control system
C. foreign imports in six balanced linear guideway
D. dual transmission of USB2.0
E. Chinese LCD, Humanity button panels
F. homemade laser (70/80) matching
G. optical system uses laser Singapore imports all lenses
H. high strength stainless Rail cellular integration backplane
I. Chassis integration structure
J. support U-download data
Detailed functions:
1. cut optimal cutting path, the shortest path can work, save time, improve efficiency
2. Chinese big-screen LCD display, users can randomly access to stored documents, human convenient
3. system transfer graphics data, a simple layout editor (such as zooming and rotating, reproduction, etc.).
4. Output data can be layered on each floor can separate definition output, the output speed, laser approach (sculpture, cutting), and the definition of parameters for each automatic preservation.
5. The images can be carved, right vector for line drawing, cutting and engraving, sculpture and accuracy can be erected.
6.USB data transmission, but also U-operation, easy to operate, fast.
Technical-parameters:
Laser type: hermetic and detached co2 laser tube
Laser power: 60w/80w
Engraving area:900*600mm
Engraving speed:0-1500mm/s
Cutting speed:0-800mm/s
Repeating locating: +-0.05mm
Moving system: CNCcontrolling units
Cooling mode:water-cooling and protection system
Working voltage: 110/220+-10% 50/60HZ
Whole power:1250w
Operating temperature: 0-45celsius
Operating humidity: 5%-95%
Controlling software: original sunylaser software
Graphic format supported:BMP/ PLT/ AI/ DXF/ DST
Machine dimension: 1300*1000*1100mm
Packing dimension:1480*1150*1190mm
Gross weight: 260kg
Applied Materials:
Wood .paper .leather .cloth .organic glass .resin .acrylic .wollens .plastic .rubber .ceramic tile .Crystal bowlder bamboo and other non-metal material.
Fields:
This kind of model apply to cloth . leather . tabuectoy . computerize embroidery cutting . electric products |
|
|
|
|
