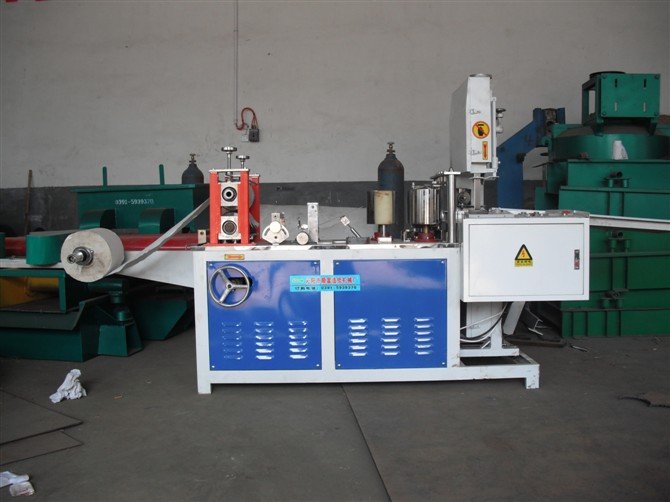

Embossing Napkin Folding Machine

Product Specifications /Features
instruction:

By embossing, the CJ-A model embossing napkin folding machine makes the cut bobbin paper fold square or rectangle napkins automatically. It adopts e-counting to guarantee the accuracy of the paper numbers and easy to package. The embossing roller is adopted heat attemperation device to make the embossed effect more distinct and stable. It can be equipped with the function of folding 1/4, 1/6 and 1/8 according to different requires, and so can be the frequency control of motor speed (need order).

Technical parameters:

model
CJ-A

finished size
200X200mm~400X400mm (others should appoint)

folded size
100X100mm~200X200mm (others should appoint)

body paper size
<=ø1100mm

folding speed
500-600 piece/min

inner diameter of body paper core
ø76.2mm

embossing bottom roll
coarse cloth roller, rubber covered roller, wool roller (please select)

counting system
e-count

dynamic
according to the machine size

overall size
according to the machine size

machine weight
according to the machine size
