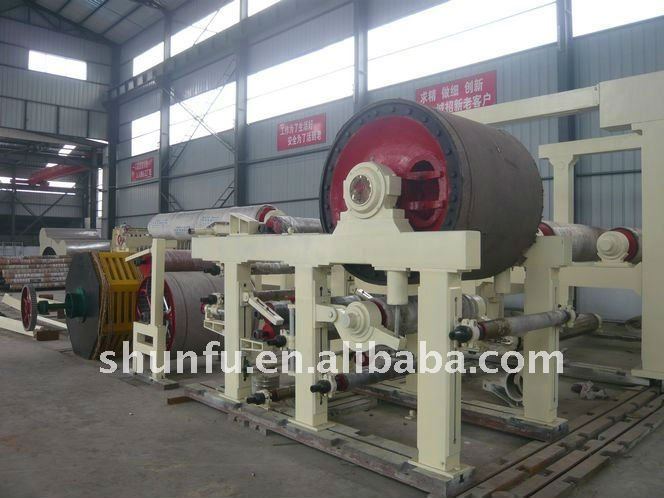

1575 Mm Model Double-Cylinder Carton Paper Machine


Model: 787?, 600?, 1092?, 1575?
Product Specifications /Features
Raw materials:waste paper,wood pulp,wheat straw,the straw,reed

Model:toilet paper machine, writing paper machine,kraft paper machine,package paper machine

Capacity:3--50ton/day(3-50t/d)



1575 mm double wire kraft paper machine

Technical parameters
Papermaking varieties: kraft paper, writing paper, printing paper
Papermaking quantitative :45-120g / m2
Net paper width: 1575mm
Copper mesh width: 1950mm
Capacity: 8-15T / D
Rail distance: 2400mm
Transmission: AC variable frequency and distribution of transmission.
Major equipment structure

1, Park Network Division: f1250mm 1950mm cage 2, f400mm 2100mm Couch 3, (including a roll back), rubber hardness of Shore 380 •2, pneumatic compression device, spray forming pressure Garden Network device two sets, set back roller device.
2, Press Section: f500mm 2100mm stone roller 1, f450mm 2100mm roller 1, the rubber hardness of Shore 900 •2, pneumatic compression device.
Third, the dryer section: f1500mm 1950mm dryer 2, f450mm 2100mm roller 2, the rubber hardness of Shore 900 •2, pneumatic compression device, the second cylinder set of dry network device.
Four calendar and coiling Department: 1575mm 3 roll-ray machines and 1575 Park drum roll machine.
5, Transmission and Control Division: use AC variable frequency and distribution of transmission, all-digital closed-loop control system.



Lead time:30--90days



Term of payment:T/T, 30% in advance,70% before shipment





Installation Projects

Pulping equipment installation ok

Installation of paper machine equipment ok

Common components configuration ok

Department based the installation of transmission ok

Static and Dynamic Balance correction ok

Pipeline installation ok

The adjustment of entire production line and try to run ok
