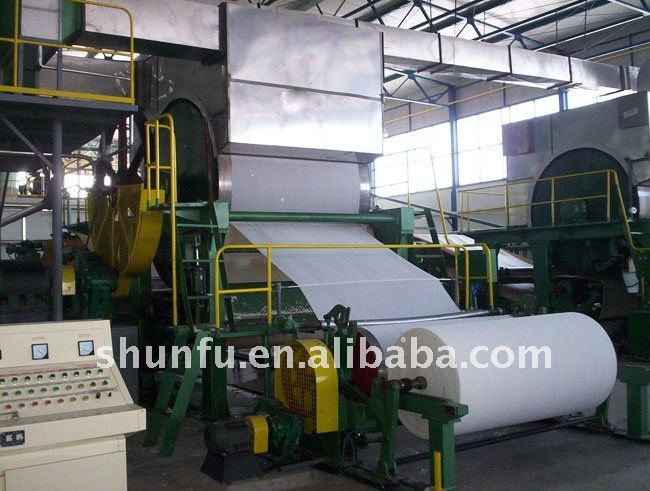

| 787Mm-2100Mm Small Type Tissue Paper Machine,1-6T/D, Waste Paper, Pure Wood Pulp
|
|
Product Specifications /Features
Technical parameters:
1. Output paper style: high& medium grade tissue paper;
2. Raw material: recycle paper, wood pulp;
3. Output paper weight: 16-40g/m2;
4. net paper width: 1092mm;
5. Width of cylinder mould: 1450mm;
6. Capacity: 2T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed
structure of main part:
1. Cylinder section: 1000mm×1450mm cylinder mould 1set, 380mm×1450mm couch roll 1set, rubber hardness HSD 38±2.
2. Dryer section: 2000mm×1450mm dryer can 1set, 350mm×1450mm touch roll 1set, mechanical press device. Rubber hardness HSD 90±2.
3. Winding section: 1092mm rewinding & perforating machine and paper cutting machine.
|
|
