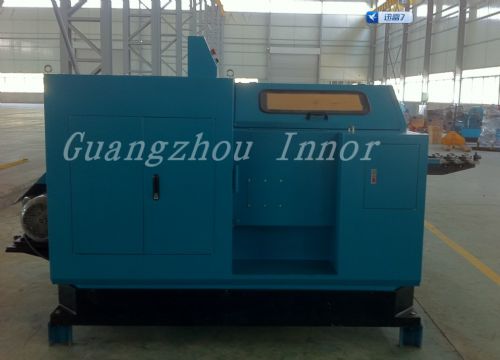

cold heading machine
Model: ID 8 X 110
|
|
Model ID 8 X 110
Forging Station (Nos.) 1
Max. Cut-off Dia.(mm) 8
Max. Cut-off Length (mm) 110
Static Die Ejection Length (mm) (K.O Stroke) 90
Dynamic Die Ejection Length (mm) 12
Shear Size (T X W X L mm) 15X40X100
Main Die Size.(mm) ?55X98
#1????2 Punch Die Holder Size ?38X90
Cut-off Die Size (mm) ?32
Main Slider Stroke (mm) 140
Screw Size can be made??m????
Max. Length 80
Min. Length 16
Max.Output (Pcs./Min.) 60-80
Main Motor (Kw) 7.5(10 hp)
Oil Pump Motor (HP) 1/2
Weight (Kg) 4000 |
|
