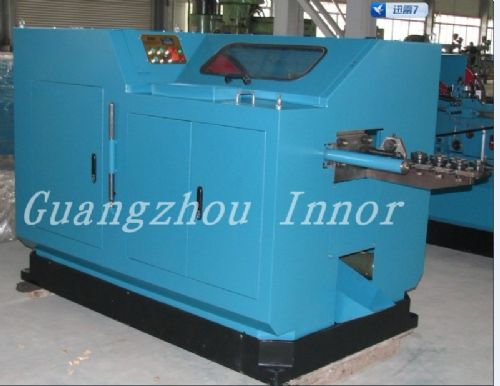

cold heading machine
Model: ID6 x 130
|
|
Model ID 6 X 130
Forging Station (Nos.) 1
Max. Cut-off Dia.(mm) 6
Max. Cut-off Length (mm) 130
Static Die Ejection Length (mm) (K.O Stroke) 110
Dynamic Die Ejection Length (mm) (P.K.O Stroke 12
Shear Size (T X W X L mm) 11.5X35X86
Main Die Size.(mm)?45X126
#1????2 Punch Die Holder Size ?36X80
Cut-off Die Size (mm) ?25
Main Slider Stroke (mm) 158
Screw Size can be made??m????
Max. Length 100
Min. Length 15
Max.Output (Pcs./Min.) 70-90
Main Motor (Kw) 7.5 (10 hp)
Oil Pump Motor (HP) 1/4
Weight (Kg) 3000 |
|
