Industrial Blow Molding Machines
|
|
Industrial Blow Molding Machines for technical Parts and Containers of up to 10,000 Liters Capacity (KBS)

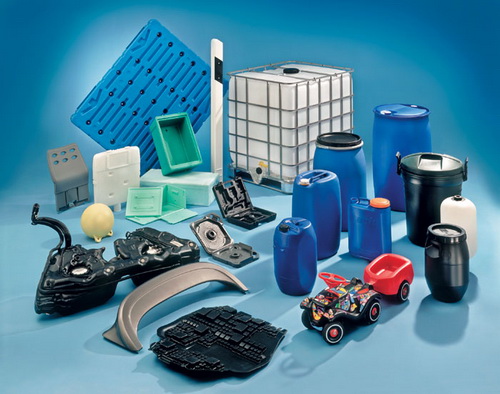

With its many years of experience in building industrial blow molding machines, Kautex Maschinenbau offers several machine series for the production of simple and complex containers with up to 10,000 liters capacity as well as for the production of technical parts such as plastic fuel tanks.

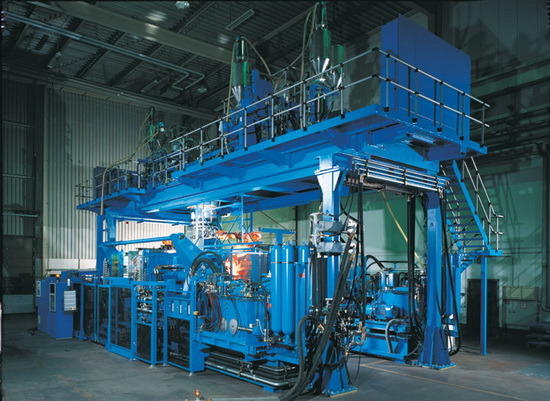

The clamping units of the KBS series blow molders share a common basic design and are installed in a closed, distortion-free, rigid frame.
The direct-acting hydraulic cylinder applies the clamping force centrally on the clamping platens, and the movement of the two clamping platens is precisely synchronized.
Large available spaces around the mold area for specialized mold functions and below the clamping platens for installation of optional parison manipulation equipment as may be needed for the production of industrial parts and large complex containers, are an integral part of the machine design. The KBS series machines are available as single and double clamp models.
Depending on the application, accumulator heads or continuous extrusion heads are used, the latter for coextrusion of up to six layers.
Examples of applications In continuous extrusion mode, the parison is either inserted in the mold with a parison feeder or a shuttling clamping unit receives the parison from the die head.
Thanks to their modular design, most machines can be customized to the user''s needs by matching clamping platen dimensions, closing speeds, clamping forces or clamp stroke with specific requirements.
Also, in terms of additional equipment and control options, Kautex Maschinenbau can accommodate virtually every customer requirement so that the optimum blow molding system is supplied for each project. |
|
