Airport baggage packing machine


Model: LP600F-L
Automatic Airport Luggage Wrapping Machine(LP600F-L)

SPECIFICATIONS(LP600F-L):
Wrapping size (180-350)mmWx(100-500)mmLx(400-1000)mmH
Turntable speed 0-36RPM
Power/voltage AC 220v
Turntable weight capacity 100kg
Packing efficency 30-60loads/hour
Machine dimension 600mmW x 1650mm L x 1700mm H
ATTN: Configuration changes can be requested.
1.Capability to wrap almost any size of luggage in just one step by adjustable metal. 2.Powered pre-stretch mechanism inside (up to250 %), meaning material savings;
3.Usage of standard (normal) size of stretch-folio material (50 sm. in width, 23 microns in thickness, 1500 meters long. hard core inside 76 mm)
4. Max baggage weight 100 kg, max dimensions of the luggage ????500mm to 1000 mm (W/H)
5.Entirely automatic functions (auto mode). Also manual mode is available from the control panel for easy and comprehensive wrapping of non-standard (fragile) item
6.Fast wrapping speed, rotary speed adjustments (0-36 rpm), vertical film carrage movement speed adjustment, smooth start and soft stop functions
7.Up/Down movement of the film carrage in auto mode, helping for the smooth wrapping of big suitcases.
8.Number of the rotation adjustment, film tension adjustment
9 Many color can be select

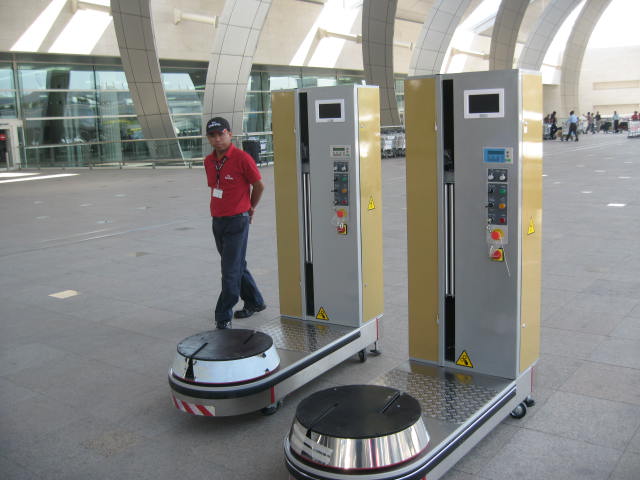

10 Picture of the machine
11.Control panel
