Helicheck Plus

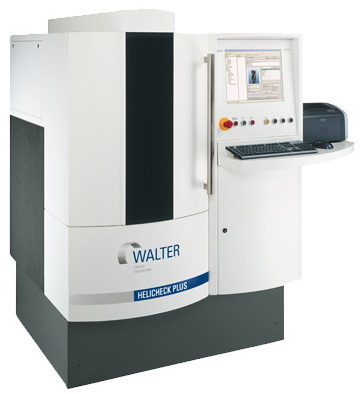

Helicheck Plus - 4-axes CNC measuring machine for non-contact complete measurement of precision tools, micro tools, grinding wheels, rotationally-symmetrical workpieces and flat workpieces

In comparison with Helicheck Pro, Helicheck Plus also enables the high-precision measurement of micro tools with diameters from 0.1 mm. Even the smallest details are visible and measurable thanks to the special reflected light unit and the diffusor. All the advantages of Helicheck Pro are naturally also present in this optical CNC measuring machine. The linear measurement deviation in accordance with VDI/VDE 2617 is E1 = (1.4 + L/300)?m.

4 permanently installed CCD cameras - 2 transmitted light cameras Special
vertical illuminator and diffusor
Additional LED side illumination
Linear measurement deviation: E1 = (1.4 + L/300mm)?m
Repeatability precision: < 1 ?m
Position resolution for all linear axes X, Y, Z: 0,004 ?
Position resolution for rotation axis A: 0.0025 degrees
Measuring value resolution: 0,25 ?m
Magnification
Transmitted light camera 1: 50 times
Transmitted light camera 2: 400 times
Reflected light camera: 400 times
Front camera: 400 times
Connected load at 230 V/50 Hz 2 kVA
Weight: approx. 2.500 kg (no vibration transmission)

Tool data

Max. diameter: 200 mm
Min. diameter: < 0.1 mm external contour measurement Diameter (calliper gauge principle)
Helicheck Plus: 110 mm
Max. length: 300 mm
Max. weight: 25 kg

Standard software

Quick-Check Modular incl. order management
Teach-In Mode
EASY CHECK
