Electrodes software module
|
|

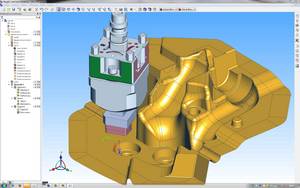

The creation of electrodes is an important stage in the complex mold-making process. With WorkNC-CAD Hybrid Modeling electrode software, users achieve impressive productivity gains in a short space of time.
With this software, electrodes can be manufactured more easily, quickly and reliably as the software automates a large number of repetitive and error prone operations, yet still allows the interactivity required for certain processes, better handled manually.
? Automatic extraction of active surfaces by stock model positioning
Surface selection by positioning a rectangular or cylindrical bounding box,
Dynamic preview of the active selection before validation,
Manual addition or removal of surfaces to or from the selection
Modification of surfaces or creation of new ones based on the extracted surface.
? Electrode stock creation:
Automatic positioning of the stock and reference square
Easy orientation of the stock
Creation of positioning chamfers,
Real time collision management between the stock and the part.
? Surface extension:
Surface extension by a simple mouse click with automatic selection of open contours
Extension options: normal, tangent, at an angle with respect to surfaces and /or according to a given direction.
? Machining and electrode axis coordinate systems:
Automatic insertion of the machining and electrode axis coordinate systems: at the base of the electrode, on the shoulder, on the reference square or the support.
? Electrode holder:
Electrode holder selection from an integrated library,
Customization of holders and addition of new holders to the library
The electrode holder position can be shifted with respect to the stock
Electrode holder management with real time collision checking between the electrode holder and the part
Collision detection between the support and the part. |
|
