Helitronic Power
|
|
Helitronic Power - Ground-breaking for maximum power

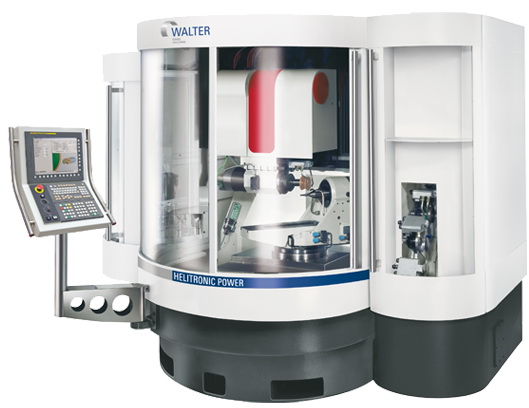

The Helitronic Power with its clearly arranged machine design is the first choice when it comes to highly flexible production and regrinding of rotationally-symmetrical tools and production parts. Several thousand of these machines reliably produce high-precision tools throughout the world on a daily basis.
Machine base:
Gray cast iron
Drives:
Motor output:
11,5KW/9.500 min.-1
Spindle diameter:
80mm/HSK50
Coolant device:
Belt filter system 480 litres 6 bar
Control system:
FANUC 310i
Software Standard:
P1,P2,P3,ToolStudio
Max. wheel diameter:
150 mm (200 mm)
Complete machining D/L
240 mm/255 mm
Machining length perimeter/front:
350 mm/280mm
Wooden tools - diameter (P7):
320 mm |
|
