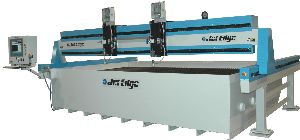

Waterjet Cutting System - Mid Rail Gantry
|
|
Jet Edge''s Mid Rail Gantry waterjet system produces complex parts out of virtually any material. Designed to easily accommodate overhead loading, the Mid Rail Gantry waterjet table is available in multiple sizes. It comes standard with one abrasivejet cutting head. A second abrasive waterjet cutting head can be added to increase productivity. Jet Edge Mid Rail Gantry waterjets are powered by Jet Edge waterjet intensifier pumps.
Featuring the AquaVision Di? Motion Controller
The AquaVision Di? guides users through the water jet process from job set-up to production. It is fully networkable, allowing part programs to be generated offline and easily transferred to the system''s hard drive for production. The process interactive trajectory automatically varies feed rate and acceleration based on known features of the job.
A Cut Above the Competition
??ndustry Leading Precision and Accuracy!
+/- 0.001" Linear positional accuracy (over 12")
+/- 0.001" Repeatability (bi-directional)
??otion system separated from the catcher tank, eliminating vibration and ensuring maximum part quality.
??otion components are protected by metal covers with brush seals versus bellows that can puncture or tear.
??00 IPM contouring and 500 IPM rapid positioning
??asy to load with a forklift or crane.
??uts virtually anything!
??ptional mirroring - cuts part cycle time in half!
??turdy design ensures lasting precision.
Construction
The Mid Rail Gantry waterjet system''s sturdy heavy-wall tubular steel beams eliminate vibration and increase system longevity. Critical X and Y bearing components are protected with heavy metal covers with brush seals. The waterjet system''s catcher tank is isolated from the motion system so energy from the waterjet cutting stream does not disrupt the mechanics of the motion system. The catcher tank features heavy gauge C channel reinforced steel side walls (stainless steel optional), replaceable steel slats (stainless steel optional), clean out couplings on both ends, an adjustable overflow to drain, and multiple C channel floor supports. The slat surface can be leveled or is adjustable.
Finish
High solids/polyurethane. Stainless steel tank and slats optional.
Standard Features
??''x5'', 5''x8'', 5''x13'', 8''x5'', 8''x13'', 13''x13'', 21''x5'', 21''x13'' and 24''x13'' work envelopes
?? abrasivejet cutting head standard
??lat-style waterjet catcher tank - separate from motion system
??C-based CNC controller
??losed Loop Drive System on X & Y Axis:
??C Digital Brushless Servo Motors, absolute encoders, SERCOS communication platform.
??reloaded anti backlash recirculating ball screws
??inear Bearings with hardened precision ground ways
??plit Y-axis drive system (dual motors)
??00 IPM Contouring and 500 IPM Rapid Positioning (460 volt)
??vailable / Requires 460v60hz-3 phase (standard manufacture), 230v60hz-3 phase, OR 230v60hz-single phase (optional)
??ull Featured Machine Operators Panel
??ariable Feed-rate Override for contouring and rapid motions
??ndividually controlled water and abrasive functions
??uto, MDI (manual data input) and manual operation
??ull Featured Hand Held Pendant
??.005" Renishaw ballbar dynamic positioning accuracy - circularity (over 24") at 70F over the entire work envelope
??/- 0.003" Renishaw ballbar tests of squareness and of straightness (over 24") at 70F
??/- 0.001" Linear positional accuracy (over 12") - Per axis*
??/- 0.001" Repeatability (Bi-directional)*
??igh Pressure Whip Delivery System with Hand Valve. 21''X13'' table has scissor arm high pressure plumbing to X-axis bridge; Whip line high pressure plumbing to Z axis carriage.
??achine way protection on all axes: heavy gauge steel covers, brush seals on X and Y axes.
*Specifications per:
(National Machine Tool Building Association Standard)
(ASME B5.54, Methods for Performance Evaluation of Computer Numerically Controlled Machining Centers)
Specifications Subject to Change.
|
|
