DRAWN CUP NEEDLE ROLLER BEARINGS
Model: HK0810
|
|
HK BK
SCE BCE
F FH
B BH
HF HFL

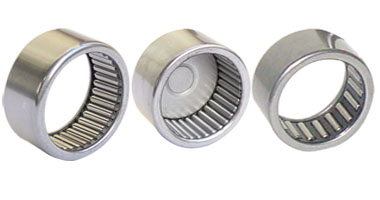

Drawn cup needle bearings are designed to support radial loads and reduce friction between rotating components. The low cross section of the drawn cup bearing provides maximum load-carrying capability with a minimum of space required. Drawn cup bearings are easily installed with a press fit in the housing. We offer a wide size range of standard inch and metric drawn cup bearings.
There are two basic designs: the full complement and the caged version. Both have a drawn outer shell which serves as a raceway for the rollers contained in the bearing. The full complement version has the maximum number of rollers mechanically retained by the drawn outer shell. This design combines high radial load-carrying capability with low cost. The standard caged version contains a one-piece steel cage to guide and retain the rollers. This design provides high speed and maximum lubricant retention capability.
Typical Applications
Transmissions, transfer cases, engines and valve trains
Steering and braking systems
Axle support
Outboard engines
Power tools
Copiers, fax machines, paper-moving equipment
Appliances
Expanded Options
Assemblies with bearings
Engineered polymer cages
Bearings with one or two seals
Closed end bearings
Oil holes
Drawn sleeves |
|
