Home > Oil, Mining & Construction Machinery > Drilling & Boring Machine > CHYDX-6 Full Hydraulic Operated Core Dill Rig

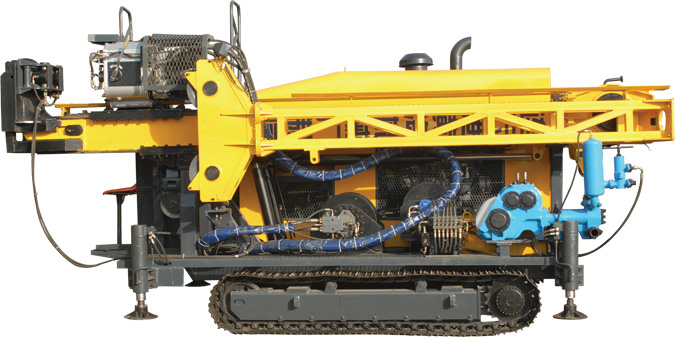

Chemshine Group Company  |  Products  |  News  |  Contact Us CHYDX-6 Full Hydraulic Operated Core Dill Rig Model: CHYDX-6 No. Items Specifications 1 Diesel Engine Model YCM6240ZG 2 Power 175 Kw 3 Speed 2200 rpm 4 Drilling Capacity BQ 2000 m 5 NQ 1600 m 6 HQ 1300 m 7 PQ 1000 m 8 Power of Rotator Rated Speed Two-speed Gear Shift/Stepless Speed Change 0-1100rpm 9 Max Torque 6400 N- M 10 Hole Diameter 121 mm 11 Max. Spindle LiftingCapacity 30000 kg 12 Max. Feeding Power 30000 kg 13 Lifting Power of Main Hoister Lifting Powersingle wire 12000 kg 14 Steel Wire Diameter 21.5 mm 15 Steel Wire Length 50 m 16 Lifting Power of Line Winch Lifting Powersingle wire 1500 kg 17 Steel Wire Diameter 6.3 mm 18 Steel Wire Length 2000 m 19 Mast Mast Height 10m (In Two-Parts Folding) 20 Drilling Angle 45-90o 21 Feeding Stroke 3200 mm 22 Slippage Stroke 1100 mm 23 Other Weight 9600 kg 24 Overall Dimensions 5900???2240???2500mm 25 TransportWay Crawler-type 26 Mud Pump Type Single-acting Triplex Piston 27 Displacement Max 320L/min 28 Pressure 8 Mpa 29 Foot Clamp Clamping Scope 55.5-117.5mm Related Products Maxdrill Y24 Hand-held Rock Drill MAXDRILL ROCK TOOLS CO., LTD Y24 Hand-held Rock Drill Most suitable for drilling downward and inclined blast-holes in medium nard and hard rock with a hardness of f=8~18: An ideal ... Maxdrill YT28 Air-leg Rock Drill MAXDRILL ROCK TOOLS CO., LTD ??T28 Air-leg Rock Drill Grouped control mechanism, quick to start up withair-on, water-on, air-off mechanism easy handle and maintain. Low noise, small ... MAXDRILL Thread Button Bit MAXDRILL ROCK TOOLS CO., LTD Thread button bits made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest ... CHYDX-5C core drill rig Chemshine Group No. Items Specifications 1 Diesel EngineModel Kummins,6BT5.9-C180 2 Power132 Kw 3 RPM 2200 rpm 4 Drilling Capacity BQ 1500 m 5 NQ ... MGY60B anchor drilling rig Chemshine Group Item/Model MGY60 MGY60A MGY60B Diameter of hole drill 90~150mm Depth of hole drill 35~60m Torque of drilling rig 350kg.m Rotate of drilling rig 0~160r/min ...
