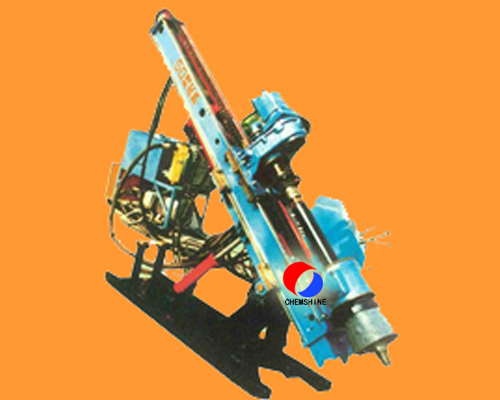

MGY60B anchor drilling rig
Model: MGY60B
|
|
Item/Model MGY60 MGY60A MGY60B
Diameter of hole drill 90~150mm
Depth of hole drill 35~60m
Torque of drilling rig 350kg.m
Rotate of drilling rig 0~160r/min
Feeding stock 1700mm 1200mm 1700mm
Lifting force/Feeding force 50/34KN
Drilling rod ???75???1500mm ???75???1200mm ???75???1500mm
DTH rod diameter 146mm
Drilling angle 0~180o
Power of drilling rig Electromotor 18.5kw, diesel engine 295
Structure whole fission fission
Weight 700kg Mainframe350kg, power station 400kg, control desk100 kg Mainframe400kg, power station 400kg, control desk100 kg |
|
