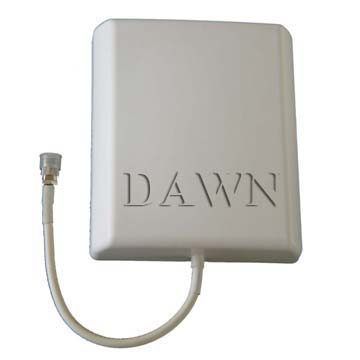

698 to 2700 MHz 7dBi Wall-Mounted Antenna
Model: DB-698/2700-7-65
|
|
Model: DB-698/2700-7-65
Specification:
Frequency Range:698-2700MHz
Gain:7dBi
Horizontal Beam width:65?
Vertical Beam width:55?
VSWR:<= 2.0
Input Impedance:50?
Electrical Down tilt:0?
Front to Back Ratio:???15dB
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radome Material:ABS
Radiating Element Material: Aluminum
Weight:0.5kg
Dimension:210???180???43mm
Features:
High Gain, Low VSWR;
Light weight, Good appearance;
Adopt good quality ABS, Long time Operation;
With customer mounting plate, Easy to mount. |
|
