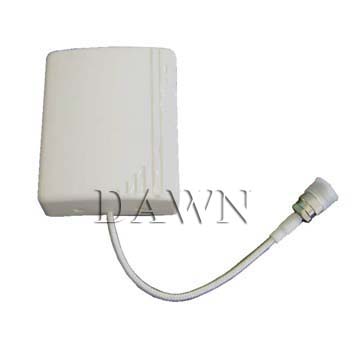

2.4GHz 8dBi Indoor Wall-Mounted Directional Antenna
Model: DB2400-8-65
|
|
Model: DB2400-8-65
Specification:
Frequency Range:2400-2500MHz
VSWR:<=1.5
Input Impedance:50?
Gain:8 dBi
Horizontal Beam width:65?
Vertical Beam width:50?
Electrical Down tilt:0?
Front to Back Ratio:???20 dB
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radiating Element Material: Aluminum
Radome Material: ABS
Weight:0.13kg
Dimension:103???82???30mm
Features:
High Gain, Low VSWR;
Light weight, Small size;
Adopt good quality ABS, long operating time;
With customer mounting plate, Easy to mount. |
|
|
|
|
