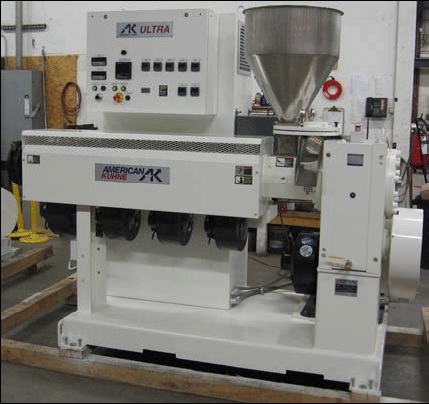

| Medium ULTRA M Medical Extruders
|
|
Medium ULTRA M Medical extruders are fixed horizontal extruders ranging from 2" to 4" (100 mm) diameter, any L/D. They are ideally suited for medical tubing for larger parts and/or higher line speeds. They may be mounted on wheels with or without track, with or without height adjustment. A wide range of options and cost effective customization is available.
Medium ULTRA M Medical extruders feature:
Rigid base with full surround barrel support mounted on two fixed and two swivel casters
Medical white paint with stainless steel barrel hoods
Heavy duty double reduction gear reducer
Integral high quality, rear mounted thrust bearing
Feed section casting with full surround cooling and stainless steel field replaceable horizontal feed liner
Digital feed section temperature indicator
Deep finned cast aluminum, bolt-on heaters with tight fitting cast aluminum shrouds
High capacity barrel cooling with long life blowers
Heavy duty heated single bolt clamp with titanium nitride coated hinge pins
Easy maintenance wire management system
Temperature controllers with automatic heater burn-out with audible alarm
Digital pressure indicator with automatic high pressure drive shut-down circuit
Multiple AC vector drive and motor brands to choose from
|
|
