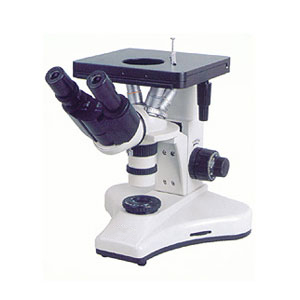

inverted Metallurgical Microscope LGX-2006B
Model: LGX-2006B
|
|
Metallurgical Microscope
Model: LGX-2006B
Detailed parameters:
45mm DIN Achromatic Objective: 10X, 100X(S, Oil)
Metallurgical Plan-scope Achromatic Objective: 40X (S)
Wide Field Plane-Scope Eyepiece: WF10X, WF12.5X
Wide Field Plane-Scope Eyepiece with 0.1mm Cross Micrometer: WF10X Micro-ruler: 0.01mm/scale
Total Magnification: 100X-1250X
Articulated Free Binocular Head, Interpupillary Distance: 55-75mm, 45? Inclined Double Layers Mechanical Stage (200X180mm) with Two Plates (?10 and ?20mm) ??
Moving Range X-Y: 70X50mm
Coaxial Coarse And Fine Focusing Adjustable Mechanism by Rack and Pinion with Tension Adjustment and Stage Height Limited Knob??
Focusing Range: 25mm??
Precision: 0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System with Blue, Green, Yellow and Ground Glass Filters
Net Weight/Set: 8kg??
Package: 1 Set/Carton 42X35X52cm??
Gross Weight/Carton: 10.5kg
|
|
