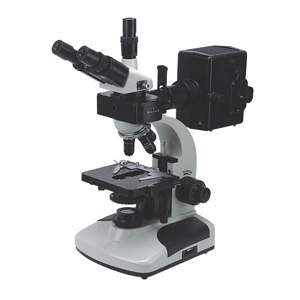

EPI Fluorescent Microscope LBX-2002H
Model: LBX-2002H
|
|
EPI Fluorescent Microscope
Model: LBX-2002H
Detailed parameters:
45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Wide Field Plane-Scope Eyepiece: WF10X/18,WF16X/13??
Total Magnification: 40X-1600X;
Articulated Free Binocular or Trinocular Head, Interpupillary Distance: 55-75mm??30? Inclined, 360? Rotatable
The Adjustable Height range of the Vertical Tube:10mm ;
Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm
?2-?30mm Iris Diaphragm And ?32 Filter??
ABBE Condenser: N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision: 0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System
B(Blue)Exciting Lighting Filter System,Wavelength 450-490(nm);
G(Green)Exciting Lighting Filter System,Wavelength 510-570(nm);
V(Violet);
U(Ultraviolet Radiation);
|
|
