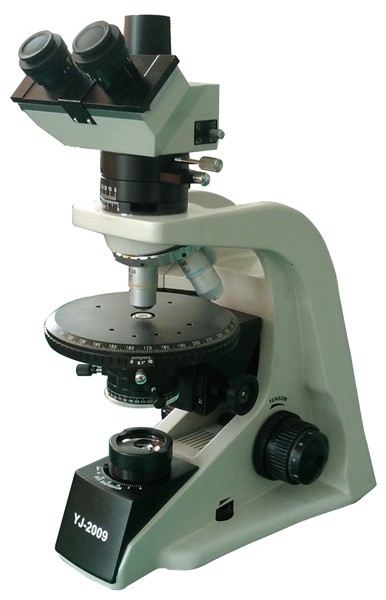

Polarizing Microscope LBX-2009P
Model: LBX-2009P
|
|
Polarizing Microscope
Model: LBX-2009P
Detailed parameters:
45mm Strain Free Achromatic Objective:4X,10X,40X,63X(or Infinity System Strain free Plane-scope Achromatic Objective 5X,10X,40X);
Wide Field Plane-Scope Eyepiece WF10X/18 with scale of Crosshair and 0.1mm and Wide Field Plane-Scope Eyepiece WF10X/18;
Total Magnification:40X-630(or 50-400X);
Sliding Binocular or Trinocular Head,Interpupillary Distance:55-75mm;
30? Inclined,360? Rotatable;
The Adjustable Height range of the vertical Tube:30mm;
Revoving Round Stage:?160mm.360?Rotatable and Graduated 1?Increments,Minimum Resolution 6''When Using Venire Scale Center Adjustable;
?2-?30mm Iris Diaphragm And ?32 Filter;Coaxial Coarse And Fine Focusing Adjustable;
ABBE Condenser:N.A.1.25;
Coaxial Coarse And Fine Focusing Adjustable Mechanism:35mm,Precision:0.002mm;
Rotatable Analyzer with Graduation 0?-90?,Sliding out of Optical Path;
Bertrand Lens,Sliding out of Optical Path;
Optical Compensator:??lip(first class red),1/4??lip,Quartz Wedge Polarize:Under the Stage,0?Adjustable 360? Rotatable;
Built-in Adjustable Brightness Halogen Lamp 6V/20W(or 3.5V/1W LED Lamp) and Kohlar Illumination System;
|
|
|
|
|
