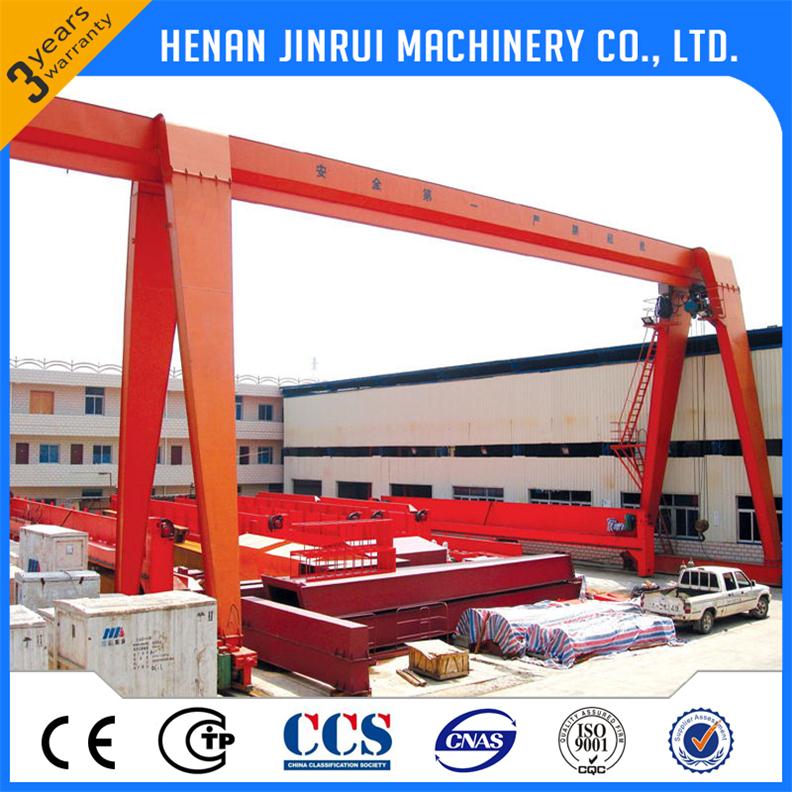

5Ton Single Girder Gantry Manufacturer Crane


Model: MH
MH Type Electric Single-girder Gantry Crane forms a complete set with electric hoist. The surface of facing wind is very small, because of its steel-piping leg. It is the best light crane, which is used both in multi-wind area and workshop. It also has ground-controlling and emote-controlling. Lifting capacity is 2-20t(Gn),and the span is 10-30m, working system is 25% and ambient temperature no more than 40ºC. Wind pressure is less than 125pa.


Features:
Material Q235B or Q345B. (Similar to the international steel Fe360 or Fe520)
Whole length CNC cutting for complete web plate, high deflection accuracy.
High quality automatic welding and NDT inspection..
Shot-blasting Sa2.5 for complete girder after welding, stress release.
Epoxy zinc rich high quality painting, 2x2 with 140µm.
10.9 class High tension bolts mounting between girder and legs, life time safe connection.
Double flange or flat wheels, anti-friction bearings, cellular buffers, derailment protectors.
Full length service platform along the crane bridge is supplied, where it is equipped with protective hand railing and toe strips.


Specification:
Lifting capacity is 5 ton to 32 ton.
Span is 7.5m to 30.5m.
Lifting height is 6m, 9m, 12m, etc.
Working duty is A3-A5.
Working temperature is -25ºC to + 40ºC.


Product Classification
Single girder box gantry crane
Used together with CD MD model electric hoist.
Lifting capacity is 5 to 20 ton.
Span is 12 to 30 meters
Working temperature is -20ºC to + 40ºC.
Application: used at open or room ground and warehouses, yards etc.
Control: ground controlling and room controlling.

Single girder truss gantry crane
The best light crane
Application: used both in multi-wind area and workshop for inside and outside.
Composed of metal structure, cart operating mechanism, electric device and trolley (electric hoist).
Control model: ground-controlling and remote-controlling.

Single girder semi gantry crane
Lifting capacity: 2 to 10 tons
Span: 10~20m
Application: it could be used in outdoor or indoor warehouse for loading and unloading.
Features: saving the investment and space, reasonable structure, favorable performance, easy installation, reliable traveling etc.

L type single girder gantry crane
Track traveling mid-light type crane,
Loading capacity is from 5 to 32t
Span is from 12 to 30m, and the
Working temperature within -25 to 40ºC.
Features: compact in frame, light in weight, steady in performance and facilitated in operation.
