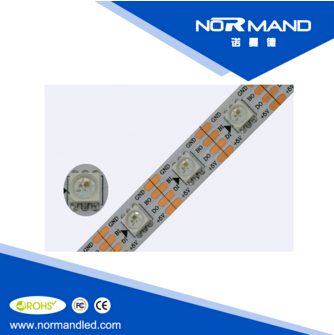

2016 New Design Digital Dual-signal Addressable Pixel 5V RGB WS2813 Led Strip


Model: NMD-WS2813
Parameter:
1) Voltage: DC5V
2) IC type: ws2813 (ws2811 chip packed into LED)
3) LED type: SMD5050 RGB
4) LED quantity: 60pcs/meter
5) Pixel: 60pcs/meter
6) Max power: 18W/meter
7) Greyscale: 256
8) Size: 5000x12x3mm (non waterproof)
9) Package: 5meters/reel/anti-static bag

Connection:
1) Signal wire: DC+, DAT,CLK, GND
2) DC+ and GND connect to power supplier; DAT,CLK and GND connect to controller
3) Relative Controller: SPI controller support ws2811; when use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
