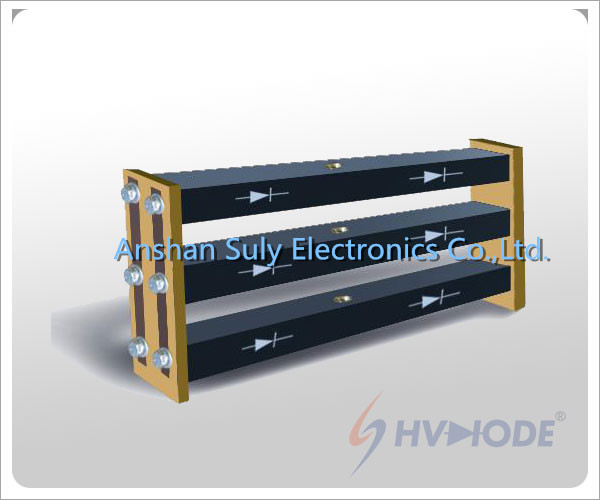

Hvdiode High Frequency High Voltage Three Phase Rectifier Bridge


Model: 3QLG10~200 Series
Hvdiode High Frequency High Voltage Three Phase Rectifier Bridge

Product Data:
Repetitive peak reverse voltage: 10~200KV
Avg. forward rectified current: 0.5A
Peak forward surge current: 10A
Peak forward voltage Max.: 20~400V
Max. reverse current: 5µA
Reverse recovery time: 100nS

Products Features:
1. Faster response speed Trr80~300nS
2. Low forward voltage drop, low leakage current
3. Avalanche breakdown protection
4. High surge current discharge impact
5. Junction temperature 150~175 oC., excellent high temperature performance
6. Epoxy package with anti-corrosion properties on surface

Applications
1. Electron accelerator high voltage device
2. Laser power supply
3. Medical equipment high voltage power supply
4. High frequency machine power supply
5. Other analyzers
6. DC high voltage generator and so on

Anshan Suly Electronics Co., Ltd. can manufacturer all kinds of high voltage silicon stacks, industrial special silicon stacks, high voltage silicon rectifier diodes, high voltage silicon stacks of microwave oven, high voltage silicon rectifier bridges, high voltage rectifier components, high voltage modules and so on.
Hvdiode products are widely used in medical equipments, electrostatic precipitation, spraying, high frequency thermal bonding, oil dehydrating, high voltage detection, plasma injection, ion acceleration, electron beam welding, electron microscopy, air purification, vacuum coating, ultrasonic cleaning, high energy ignition, X-ray machine industrial microwave, radar modulation, laser equipments, all kinds of electronic equipments'' power supplies.
Hvdiode products sell well throughout domestic and overseas.
Please feel free to contact Connie if you have any need of hvdiode rectifier products. We can also supply high quality customized rectifier products.
