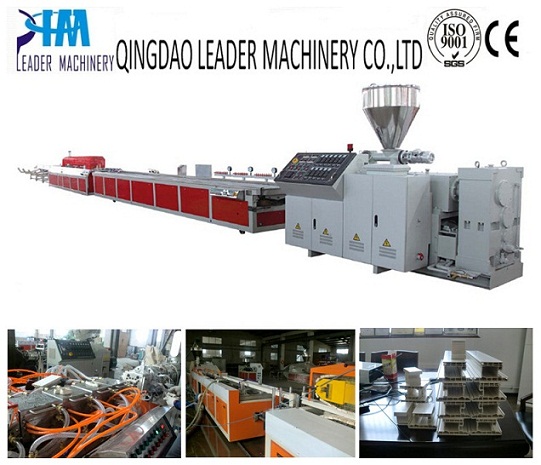

pvc window and door profile extrusion line


Model: SJSZ-65/132
YF series PVC profile extrusion line is mainly used for extrusion of PVC window and door profile, wood-plastic profile, plintus, wall panel and ceiling panel, electrical conduit trunking channel, decorating profile ect. The whole production line includes conical twin screw extruder, die head, vacuum calibrating table, haul off unit, cutting unit, film sticking device, and stacker. According to the different profile section and mould design, varied models of twin screw extruder and downstream equipments can be optional.

Performance and advantages:
? Extruder: adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.
? Vacuum calibrating table: adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.
? Haul off machine: adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
? Cutting machine: the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
