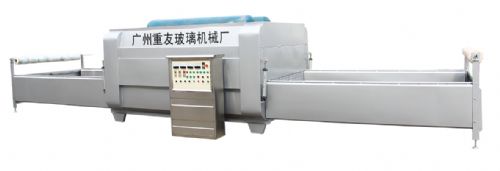

multifunctional baking paint and laminated safety glass machine

Outdoor multifunctional baking paint and laminated glass machine is our latest developed equipment after many efforts by our technical personnel. The products produced by this machine is widely suitable for the decorative glass market and have many good characteristics, such as strong adaptation in many areas, easy operation, advanced production technology. It can be used not only for glass production in large companies but also some medium and small factories. Other hard flat materials like ceramic tiles, wooden/marble plates, microlites can also be processed by this machine. Bended glass can be baked with design too!

Finished art glass products produced by this machine can be used for cabinet doors, toughened stoves, sliding doors, partitions, background walls, furnitures,coffee tables, oven tops etc. Many kinds of glass can be processed in large quantity, including: tempered glass, laminated safety glass with film, silk cloth and pictures, thermal bending laminated glass and they can be used in outdoor curtain wall building, decoration of the hotel, emporium and so on. What''s more, numerous effects of art glass can be achieved by this machine:marble vein and wooden grain effect glass, imitation embossed effect glass, jade engraving effect glass and so on.

MAIN FEATURES OF THE MACHINE:
1.All color can be shaped just one time, and the machine is easy to be operated with high efficiency.
2.All kinds of flat and even bent glass can be processed with design on it.
3.Consulting, training and all technology used in this machine can be upgraded for free.
4.Finished glass products enjoy great solidity, clear gradation and high vividness(color will not change for years).
5.A disc of wide varieties of designs is in supply so as to save troubles for you to search for them.
6.The large power vacuum pump ensures the transparency of the glass and no air bubnles, whitening will occur.

Technical data:
Model Number Equipment Size(mm) Max. Glass Size(mm) Glass Thickness
(mm) Application Voltage(v) Power
(kw) Weight
(kg)
ZY-F183 9500*2460*2000 1830*2440 3-25 380 29 3000
ZY-F122 9500*1860*2000 1220*2440 3-25 380 21 2000

(Note: OEM specifications are available)
