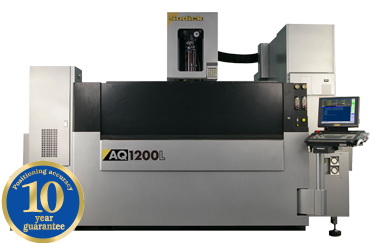

AQ1200LH Wire EDM
The AQ1200LH is Sodick's largest Wire EDM and features Sodick's Linear Motor Technology and a 24" Z Axis. The AQ1200LH features a direct-drive, frictionless, vibration-free mechanism that has unrivaled acceleration and positioning accuracy with no backlash.

Features
10-Year Positioning Guarantee
Linear Motor Drives (X, Y, U, and V axes)
Glass Scale Feedback (X, Y, U, V)
Super Jet Annealing High Speed AWT
Wire Tip Disposal Unit
Advanced Corner Control
Automatic Tension Servo Control
FTII (Precision Pick-Up Function)
High Speed Electrolysis-Free Power Supply
USB and LAN Connection Port
Remote Hand Control and Mouse
Energy Saving Circuit
Dielectric Cooling Unit
Built-In Voltage Stabilizer
UPS (Uninterruptable Power Supply)
On-Board, User-Friendly Heart NC Software
44 lbs Spool Wire Feeder

Specifications
X - Axis Travel 47.24" (1,200 mm)
Y - Axis Travel 31.50" (800 mm)
Z - Axis Travel 24.00" (600 mm)
U, V Axis Travel 48.03" x 32.28" (1,220 x 820 mm)
Wire Diameter Range (min ~ max)
0.006" ~ 0.012" (0.15 ~ 0.30 mm)
Work Tank Dimensions (W x D)
71.81" x 55.12" (1,824 x 1,400 mm)
Maximum Workpiece Weight 8,818 lbs (4,000 kg)
Distance From Floor to Table Top 47.24" (1,200 mm)
Machine Tool Dimensions
190.95" x 159.84" 115.35" (4,850 x 4,060 x 2,930 mm)
Required Floor Space (W x D)
234.25" x 208.66" (5,950 x 5,300 mm)
Machine Weight 26,455 lbs (12,000 kg)
