UV printer water cooling chiller CW-5200 50/60Hz


Model: CW-5200
UV printer water cooling chiller CW-5200 50/60Hz

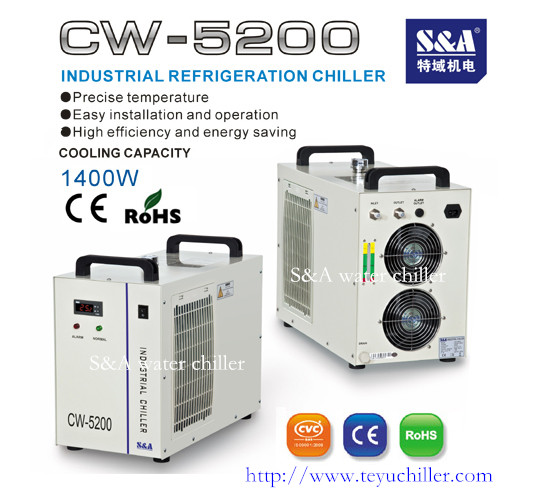

CW-5200 water chiller is developed and produced by S&A company, applied to cool UV printer.
S&A CW-5200 is refrigeration type industrial water chiller of 1400W cooling capacity. It is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Specification
CW-5200AG: applied to cool a single 130W CO2 laser tube
CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes.
CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube;
CW-5200 water cooler parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a
Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 26Kgs; G.W: 29Kgs;
Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
About S&A Brand
S&A produces more than 60000 units of industrial chillers by year, we always insist on Quality First in design and production.
"S&A" and "TEYU" have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%
