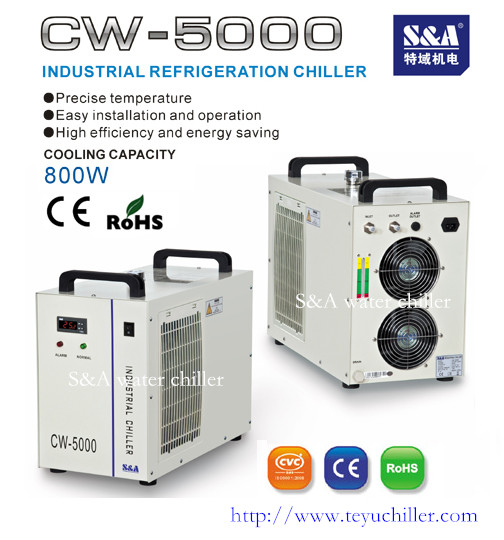

Compact Water Cooled Chillers CW-5000 110V/220V


Model: CW-5000
Compact Water Cooled Chillers CW-5000 110V/220V
CW-5000 compact water cooled chiller is developed and produced by S&A company.
S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity. It''s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There is 1 water outlet and an inlet, applicable to cool single laser glass tube.
CW-5000 water chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
Specification
CW-5000AG: applied to cool a single 80W CO2 laser tube (emitting rate higher than 60%);
CW-5000AH: applied to cool a single 5KW spindle or welding equipment;
CW-5000AI : applied to cool a single 5W-10W solid-state laser.
About S&A Brand
S&A produces more than 60000 units of industrial chillers by year, we always insist on Quality First in design and production.
"S&A" and "TEYU" have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%
