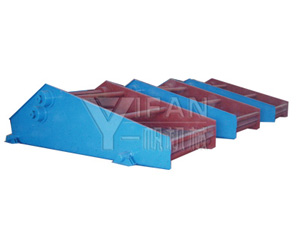

Linear Vibrating Screen / Horizontal Vibrating Screen


Model: ZK
ZK Series Linear Vibrating Screen
1. Simple structure, easy to repair;
2. Smooth operation, high efficiency;
3. High quality, long life service;
4. CE & ISO.

vibrating screen, screening equipment, screening plant

ZK Series Linear Vibrating Screen takes eccentric block as exciting force, so materials on sieve were throw up, and at the same time do forward movement straightly. Materials ingress the screen evenly, produce several specification materials through multi-screen, and discharge from respective opening. It has such advantage as low consumption, high output, simple structure, easy maintenance, full-closed structure, no dust emission, automatic discharging and so on. It is more suitable for working trend.

Working principle of ZK Series Linear Vibrating Screen:
Linear vibrating screen adopt dual motor drive, when the motors do synchronous, reverse rotation, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis, and stacked together with the direction that perpendicular to the motor axis,so its trajectory is a straight line. There is a dip on the two motor''s relative screen surface, materials was tossed by leaps and bounds forward for linear motion under the resultant action of exciting force and material self-gravity, so as to achieve the purpose of screening and grading. It is used in production line and realize automate operations. It has such advantages as lower consumption, high efficiency, simple structure, easy maintenance, full-closed structure, and no dust emission and so on. The Maximum screen mesh is 325, it can be screen seven different kinds of materials.

Application of ZK Series Linear Vibrating Screen:
It is used for selecting and classifying the powder and granular materials. and widely used in plastics, abrasives, chemicals, medicine, building materials, food, carbon, fertilizer and other industries.

Features and Advantages of ZK Series Linear Vibrating:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful;
2. The beam and case of the screen are connected with high strength bolts without welding;
3. Simple structure, easy to repair;
4. Adopt tire coupling and soft connection makes operation smooth;
5. High efficiency, easy maintenance, sturdy and durable.
