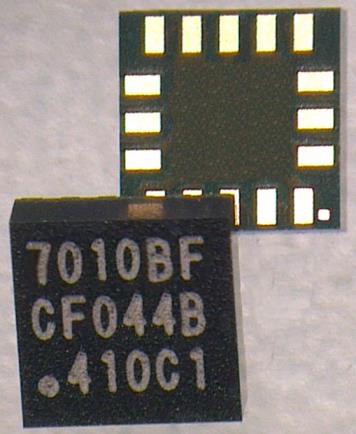

MC7010 9-Axis iGyro™

MC7010 9-Axis iGyro™ Overview

MC7010 provides 9 DOF function with an ultra-small 3x3mm single package for consumer electronic market. It consists of a 3-axis accelerometer, 3-axis magnetometer and a specially designed sensor fusion unit. Besides the accelerometer and tilt-compensated compass, it integrates the mCube patented iGyro™ engine supported by the optimized sensor fusion unit design, to provide an ultra-low power gyroscope function. MC7010 can provides 9 DOF function for mobile phones, tablets, and other consumer electronic devices with competitive performance and ultra-low power.

FEATURES
 Competitive 9 DOF solution
- 3-axis accelerometer
- 3-axis magnetometer
- 3-axis virtual gyroscope function
 3x3 single package, small footprint
- 3x3x0.95mm 16pin LGA
- Industry leading 9DOF package
 Ultra-low power consumption
- 0.25mA normal 9DOF mode
- 75% power saving vs. physical gyroscope function
 Flexible pin compatibility
- mCube 3-axis accelerometer MC325x
- mCube 6-axis eCompass MC6450
- One PCB for 3 axis, 6 axis and 9 axis
 Digital interface
- Dual I2C interface up to 400KHz
- 1 interrupt for accelerometer
- 1 interrupt for magnetometer
 Power supply
- AVDD 1.7-3.6V
- DVDD 1.7-3.6V
