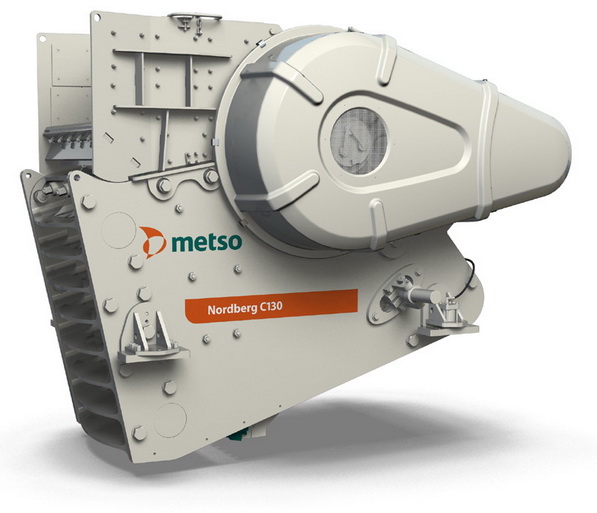

Nordberg C130 jaw crusher
The new Nordberg C130 jaw crusher is the latest addition to the highly successful Nordberg C series range. At the heart of the C130, lies over one hundred years of dedication to engineering excellence, dedication to outstanding crusher performance and dedication to satisfying the needs of our customers.

C130 jaw crusher is ideal for:
All mining and aggregate companies
Major quarries
Large scale mobile plants
Main customer benefits of the C130:

Capability to intake large feed size up to 800 mm (32") and efficiently crush it down to requested product sizes to get the lowest possible cost per ton
Premiuim quality components pinned and bolted together for the greatest reliability over the product life cycle
Modular design enables multiple transport options and makes surface and underground installations easier
Safe operation and maintenance to meet the latest standards and requirements
Main features of the C130:
Incorporating the same design features as the highly successful Nordberg C120 and C150 jaw crushers, the performance of C130 is excellent in both mobile and stationary applications. A small nip angle and excellent kinematics ensures aggressive crushing along the whole length of the crushing cavity in all rock conditions. A deeper 1 000 mm (40") feed opening is able to handle coarser feed material and greatly reduces the need for blasting and hammering. Even easier stroke adjustment makes C130 the most versatile primary crusher on the market.

The unique non-welded frame construction of C130 ensures excellent fatigue strength and extended crusher lifetime. Based on innovative in-house casting and engineering know-how, the robust and high-quality Metso components at the heart of C130 guarantee excellent reliability. Safety is one of the main principles in the design of C130. As a result, lighter and more durable composite guards that are safer and easier to handle, specially designed lifting tools and a limited number of service points make maintenance of C130 easy and keep your personnel safe.

The installation solutions available allow Nordberg C130 to be easily installed in surface, underground or mobile applications, according to customer need. The revolutionary pin and bolted structure means that the C130 jaw crusher can be easily disassembled and transported into the deepest of mines easily and cost-effectively. Thanks to the excellent compact dimensions of the C130, older crusher models can be easily retrofitted with the C130 − a quick, easy and profitable solution.



Technical specifications

Feed opening
width 1300 mm (51")

Feed opening depth 1000 mm (39")

Nominal power 160 kW (200 HP)

Weight (Basic unit) 40,100 kg (88,500 lbs)

Operating speed 220 rpm

Minimum c.s.s.
Maximum c.s.s. 100 mm (4")
250 mm (10")
