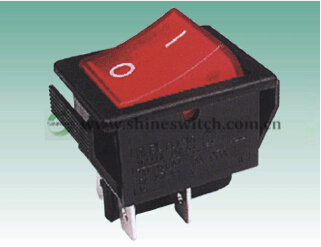

Shanghai Sinmar Electronics RL2-1 Rocker Switches 10A250VAC 3PIN Round


Model: RL2-1
Technical characteristics
16 (4) A 250VAC T85
G 16 (4) A 250VAC T125 / 55 1E4
Rating16A 125VAC 8A 250VAC
H 16 (8) A 125VAC T85 / 55 1E4
Switch Function: ON-OFF w / lamp
Insulation resistance: >=100mΩ (500VDC)
Contact resistance: <=30MΩ (initial value)
Withstanding voltage: AC1500V, 50 / 60Hz, 1min
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Switch button intensity: 300 ~ 600gf
Life: Mechanical >=500,000 times; electrical >=10,000 times
Working temperature: -25 ~ + 125 ?C
Safety Certification: UL, CUL, ENEC, CQC
