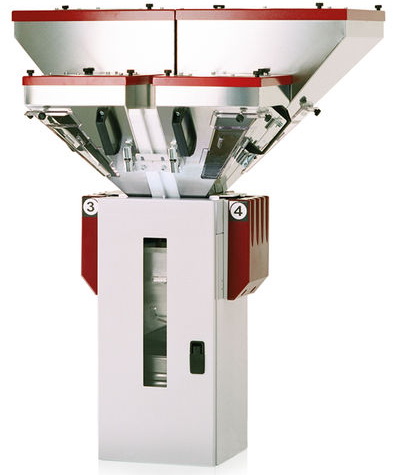

Gravimetric blending GRAVIMAX B34
Model: GRAVIMAX B14
|
|
The GRAVIMAX B34 is based on the GRAVIMAX B14. It has a total material throughput of up to 200 kg/hr - and this increased capacity meets the demands of most injection molding applications.
The material hoppers and their valves are designed in such a way that "bridge building" cannot arise that would prevent the feeding of the plastic.
Technical specifications:
Batch size: 3 kg (6.6 lbs.)
Valve: 40 + 60 mm (1.6" + 2.4")
Lid prepared for: FEEDMAX 200 + 300 series
Max. number of components: 4
Hopper size 1 + 4: 13 l (16.5 lbs.); 2 + 3: 30 l (38 lbs.)
Standard characteristics
Simple operation.
Highly precise metering valves.
Interchangeable steel hoppers.
"Clip-on" corner window.
Easily removable weigh bin.
Uniform material blending |
|
|
|
|
