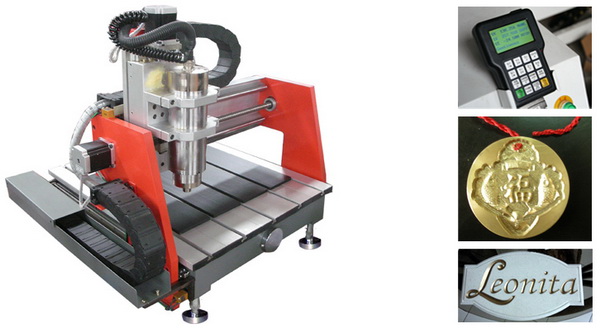

MAXI-S 0404 CNC router
The MAXI-S 0404 CNC router is the perfect choice for the home-shop machinist, sign maker, artist, engraver, panel maker, or educational Institution who needs an affordable CNC router with 2D & 3D CAD/CAM machining capabilities. The MAXI-S 0404 CNC router is small enough to fit into almost any work space and therefore is extremely portable. The MAXI-S 0404 is built with a moving gantry design and linear interpolation in XYZ is achieved using high powered, high precision stepper motors and drivers. The machine is extremely easy to use and is run using a handheld DSP controller enabling files to be cut without it necessary to be connected to a PC.

Working area: 400mm*400mm*120mm, PVC table ( with Aluminium profile)
Drive System: High power stepper motors
1.5 kw air cooled Maxicam spindle
T-slot PVC table (with Aluminium Profile)
HIWIN linear rails
DSP hand held controller system ,
Z zeroing Tool sensor,
One starter set engraving tools
Inverter: Taiwanese Delta Inverter
Electronic Parts: German Schneider Electronic Spare Parts
Switch gear: Japanese OMRON Switch
Cable: MAXICAM Highly flexible towline-only Cable Imported fire-resistant double-sheathed, can be bent 300 000 times
Igus cable chain
Voltage: 1PH 220V 60HZ
Package: plywood case

NCStudio PC based Control System
Italian HSD Spindle
Working area : up to 600mm x 900mm
Oil Mist Cooling System for engraving non-ferrous metals
