3D Printed Electronics AJ 45X
|
|

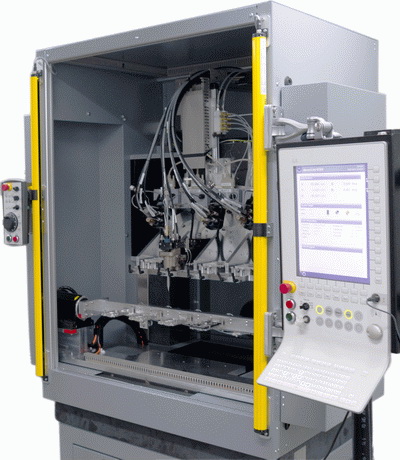

The AJ 45X is a compact, high throughput, mass production system for 3D Printed Electronics. With 4 Aerosol Jet® print heads and 5 axes of simultaneous motion, rapid parallel processing of multiple parts is achieved. Designed specifically for 24/7 operation the 45X is robustly constructed for minimal maintenance operation. Linear motor and encoder technology guarantee maximum printing accuracies (+/- 5µm) even at high-dynamic feed rates. High speed (< 1ms) motion control and simultaneous calculation for axis positioning enables rapid and consistent print speeds enabling optimised print cycle times. "Look Ahead" path control with jerk compensation ensures harmonious movement and sinusoidal accelerations that guarantee printing accuracy. |
|
