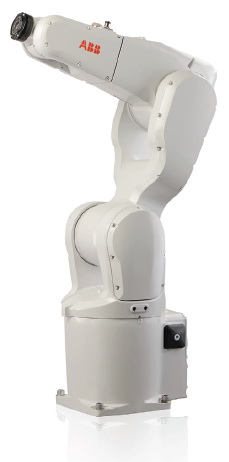

IRB 1200 robot
Have you ever wanted to make your machines 15% smaller and 10% faster? ABB's IRB 1200 allows you to do exactly that. Specifically, it addresses the needs of the material handling and machine tending industries for flexibility, ease of use, compactness and short cycle times while still maintaining large working envelopes.

As a family of robots, the IRB 1200 comes in two variants which can handle a wide range of applications and are cost effective due to commonality of parts. The 700 mm reach variant can carry a payload of up to 7 kg, while the longer reach 900 mm variant can carry up to 5 kg of payload.

The IRB 1200 excels in situations that r equire a compact package without sacrificing working range or functionality . Short throw distances between operations make for faster cycle times in as small a cell as possible, meaning you can do more with less. The IRB 1200 - better by design and best in class.

New design
The IRB 1200's functional form factor is a featur e which is not merely a cosmetic enhancement. Its smooth surfaces make it easy to keep clean and maintain in environments such as CNC machine tending and material handling in the food industry. This theme of efficient design is one which can be found across the entire spectrum of IRB 1200 features and results in features that allow for 15% smaller cells with 10% shorter cycle times.

Compact
The IRB 1200 has no offset in axis two - an innovation that results in a longer stroke than other small robots, meaning it can be placed very close to the work piece and still be functional. One particular benefit of this long stroke is that it allows for a much more compact installation when the robot is mounted on the ceiling inside a small cell, such as in electronics machining or polishing applications.

The robot's large useable working ar ea contained in a small package leads to shorter cycles and more compact machines.

Easy to integrate
With four air ducts, 10 customer signals and Ether net, the IRB 1200 is built with ease-of-integration in mind. For instance, both electrical and air connections can be made to the robot via side ports or an underline option, and the Ethernet port makes it easy to integrate with other equipment.

These connections are routed internally on the r obot from very close to the wrist flange all the way to the foot, thus enhancing the compactness of the package.

Durable
Both IRB 1200 variants can be mounted at any angle and come with IP 40 pr otection as standard - IP 67 protection is also available as an option and an ISO 4 clean r oom version is planned for the next r elease.
