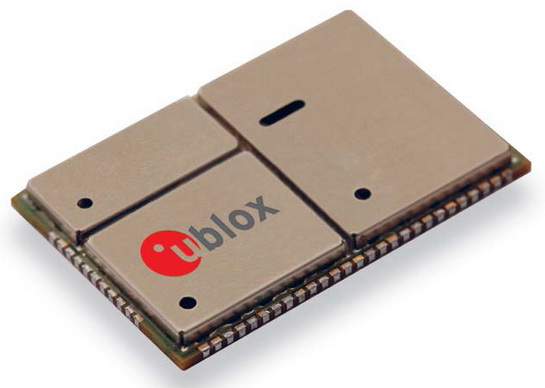

LISA-U2 3.75G UMTS/HSPA(+) module series
|
|
3.75G UMTS/HSPA(+) wireless modems
LISA-U2 series UMTS/HSPA+ modem modulesWith 6-band WCDMA(UMTS) and quad-band GPRS/EDGE, LISA-U2 modules are suited for networks worldwide. Features include data-rates of up to 21.1 Mb/s (downlink), a rich set of internet protocols, very small footprint, very low power consumption and extended operating temperature range. LISA modules provide fully integrated access to u-blox GPS receivers. Antenna diversity permits LISA-U2 modules to provide the highest data speeds.
Highlights
Worldwide WCDMA(UMTS) and GPRS/EDGE coverage
HSDPA 21.1 Mb/s, HSUPA 5.76 Mb/s
SMT form factor, small foot-print, 22.4 x 33.2 x 2.6 mm
Easy migration from u-blox GSM/GPRS modules: supports nested 2G/3G/4G designs
Low idle mode current: 1.5 mA
Extended temperature range: -40 to +85ºC
Simple integration of u-blox GPS and A-GPS
CellLocate®: location based on cellular networks
Manufactured in ISO/TS 16949 certified production sites |
|
