|DryLin® T - Profile Rail Guides
|Normally ship in 24-48 hours

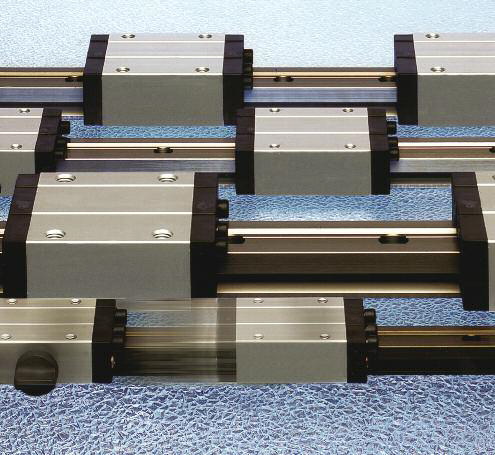

DryLin® T profile rail guides were specially developed for applications in automation and handling systems.
The design objective was a heavy duty linear guide which could be used in a wide range of potentially demanding applications.
At a glance:
Max. surface speed: 49.21 ft/s
Operating temperature range: -40º F - 194º F
*Other materials available upon request
1 The profile rail and carriage are manufactured from 6063-T6 Aluminum. The rail is hard-anodized and the carriage clear anodized.
2 Six sliding plastic elements made from iglide® J act as self-lubricating guides.
3 Each sliding element can be adjusted manually or automatically.
4 All steel parts are galvanized or stainless steel.
5 The end plate is solid plastic with an optional aluminum-HD carriage.
