| EZ-SCREEN Low-Profile Safety Light Curtain Systems
|
|
Overview
The space-saving, compact profile of the EZ-SCREEN LP is ideal for smaller machines, yet robust enough to meet the demands of large power presses.
Compact profile and multiple mounting options make EZ-SCREEN LP Safety Light Screens a perfect fit for a wide range of machine safety applications
Exceeds OSHA/ANSI Control Reliability requirements, certified to cULus NIPF, and CE certified to Type 4, Category 4PLe and SIL 3

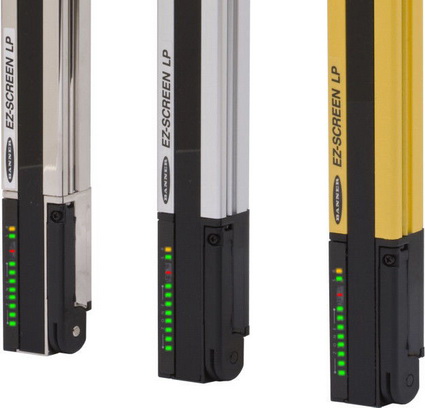

Available in nickel-plated housings for ESD-safe applications, clear anodized aluminum housing or "safety" yellow powder-coat housing
14 mm or 25 mm resolution; defined areas from 270 to 1810 mm (10.6? to 71.2?)
Positions first and last beam at the ends for continuous sensing; included side-mount brackets allow no "dead" zone
Provides response times as fast as 8 milliseconds with detection ranges up to 7 m |
|
|
|
|
